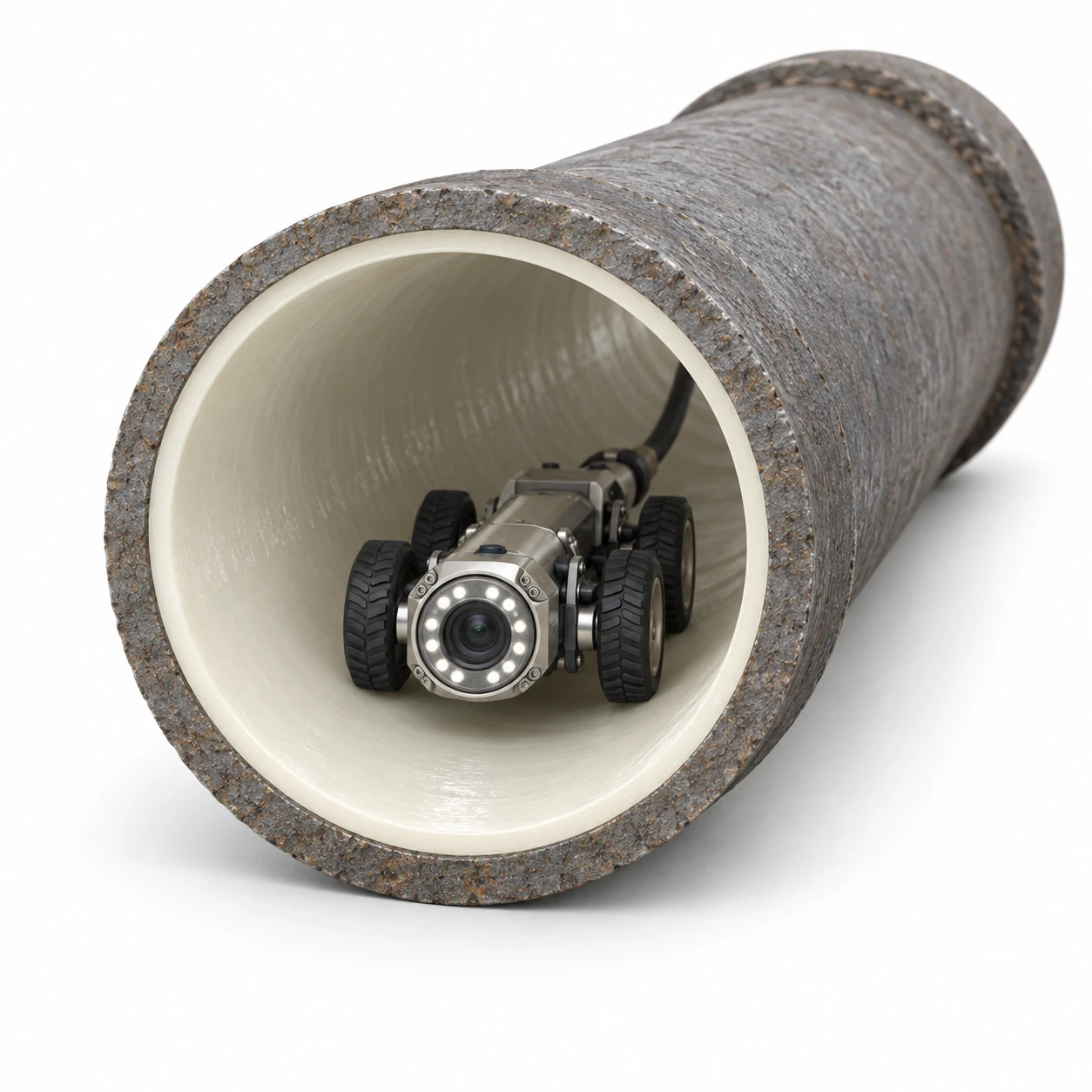

CCTV pipe inspection
Camera inspection records cracks, corrosion, blockages and critical areas. The findings help define the section to rehabilitate and whether further investigation is needed.
Trenchless pipeline rehabilitation
Pipe Relining Services in Oman
Permanent Investment Prosperity LLC (PIP) coordinates CIPP pipe relining in Oman with S.E.A. specialist technology and delivery capability. Restore suitable existing pipelines from within, with the method defined around pipe condition, access and operating requirements.
Discuss your pipelineExplore the technology

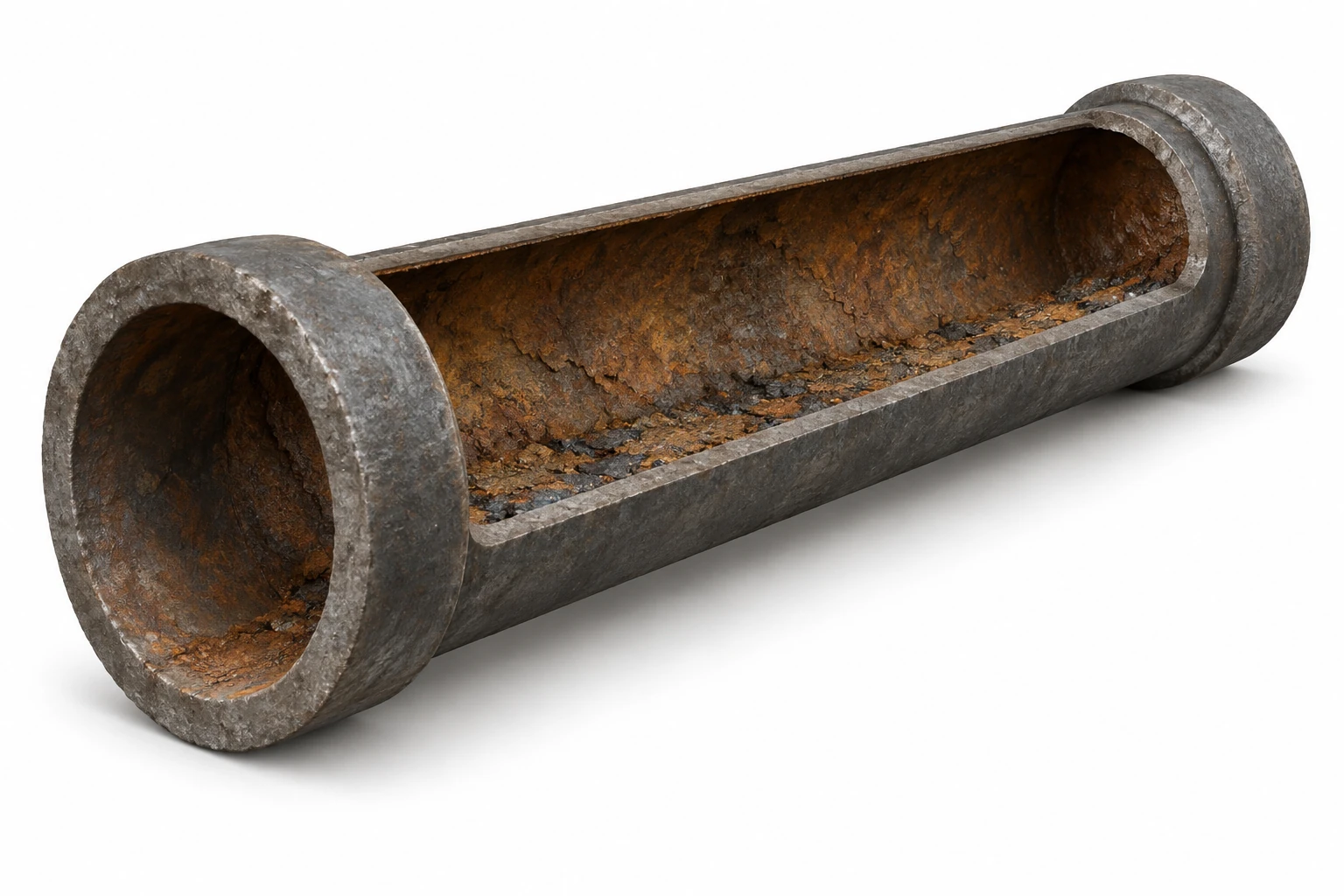

A new lining. Within the existing pipe
Drag the handle to the right to reveal the CIPP liner inside the existing host pipe.
↔
Drag right to add the liner →
CIPP lining
Rehabilitate the pipe from the inside
Cured-in-place pipe (CIPP) lining introduces a resin-impregnated liner into the prepared pipe. Controlled curing forms a continuous internal structure within the existing pipeline.
This no-dig pipe repair approach can limit excavation and surface disruption compared with replacing the full pipe run. Access works, isolation and the work window are assessed for each project.
Applications for technical review
- Industrial pipeline rehabilitation
- Sewer pipe relining and drainage networks
- Water networks, subject to service-specific material requirements
- Buried pipelines where excavation is difficult or disruptive
Pipe material, diameter, geometry, damage, pressure, temperature and conveyed medium determine whether CIPP is suitable.
From diagnosis to verification
Plan the complete rehabilitation scope
Clean the existing pipe
Remove deposits and obstructions and prepare the internal surface for the selected liner. Cleaning requirements form part of the rehabilitation plan.
Explore industrial pipe cleaning ↗Install and cure the liner
Position the resin-impregnated liner and cure it under controlled conditions. SEA describes a steam-assisted CIPP process; the project specification defines the applicable system.
Inspect and document
Final inspection and agreed checks document the completed work. Handover requirements and return-to-service conditions are defined in the project scope.
Can every damaged pipe be relined?
No. Condition, geometry, access and operating requirements must be assessed first. Collapsed sections or other defects may require additional repairs before a liner can be considered.
How does CIPP differ from a surface coating?
CIPP uses a resin-impregnated liner cured inside the existing pipe to form a continuous internal structure. The liner design and performance requirements are specified for the application.
Is excavation still required?
Trenchless pipe rehabilitation can reduce excavation along the pipeline. Access points, isolation arrangements and local repairs may still require surface works; these are defined after assessment.
Can PIP coordinate inspection and cleaning?
PIP is the local project contact in Muscat, with SEA specialist capability for inspection, preparation and relining. Send the available pipeline records so the required scope can be reviewed.
Start the conversation
Review your pipeline with our team in Oman
Send pipe drawings, material, diameter, length, inspection records and photographs. Include the conveyed medium, operating pressure and temperature, site location, access constraints and required work window.
Request a pipe relining proposal
