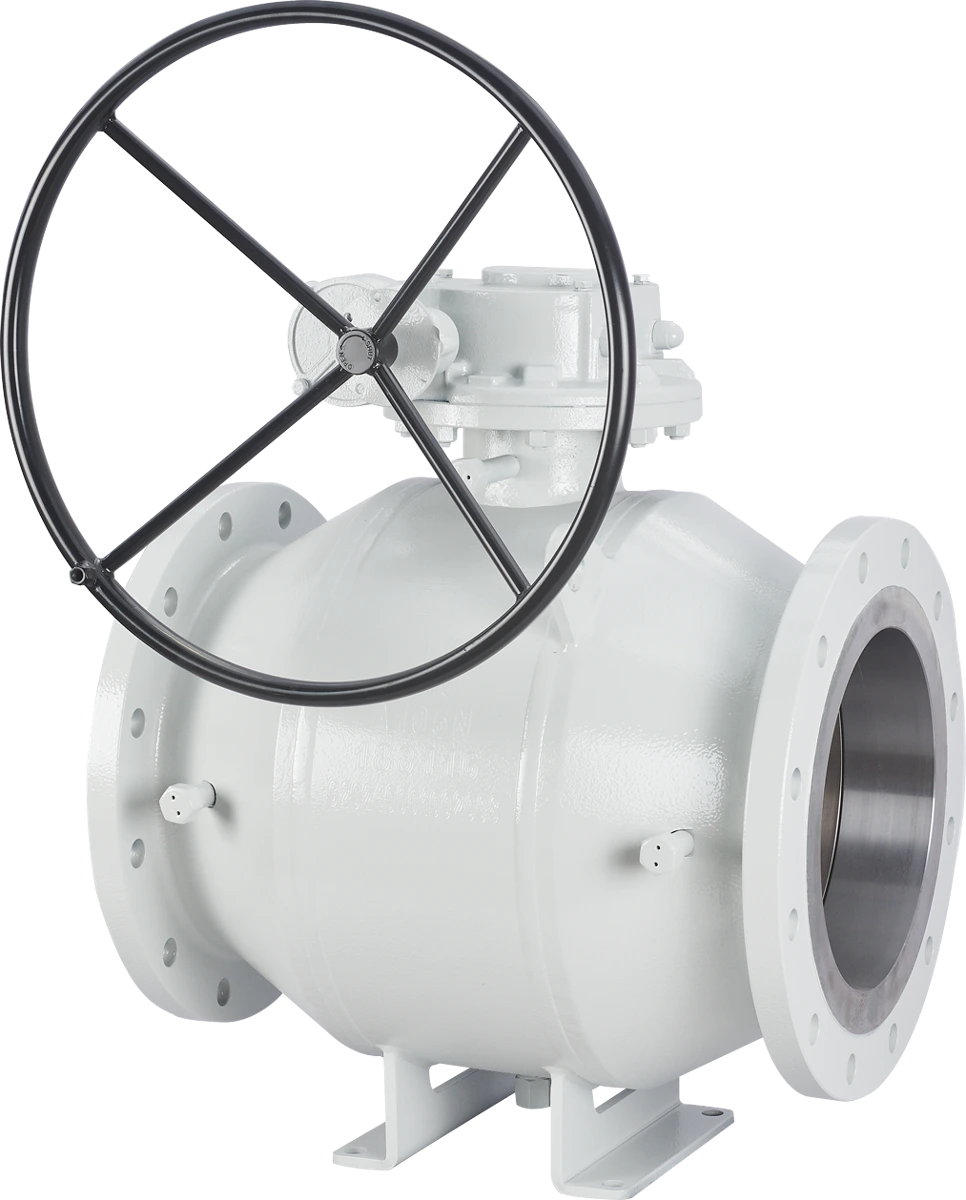

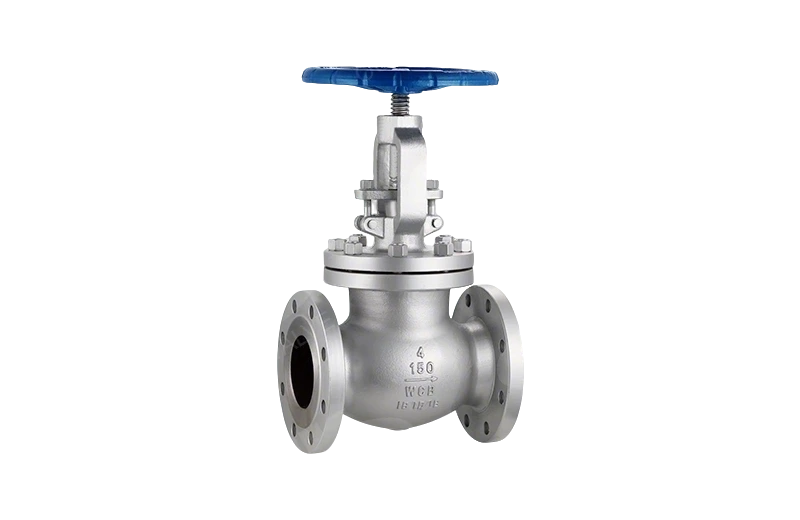

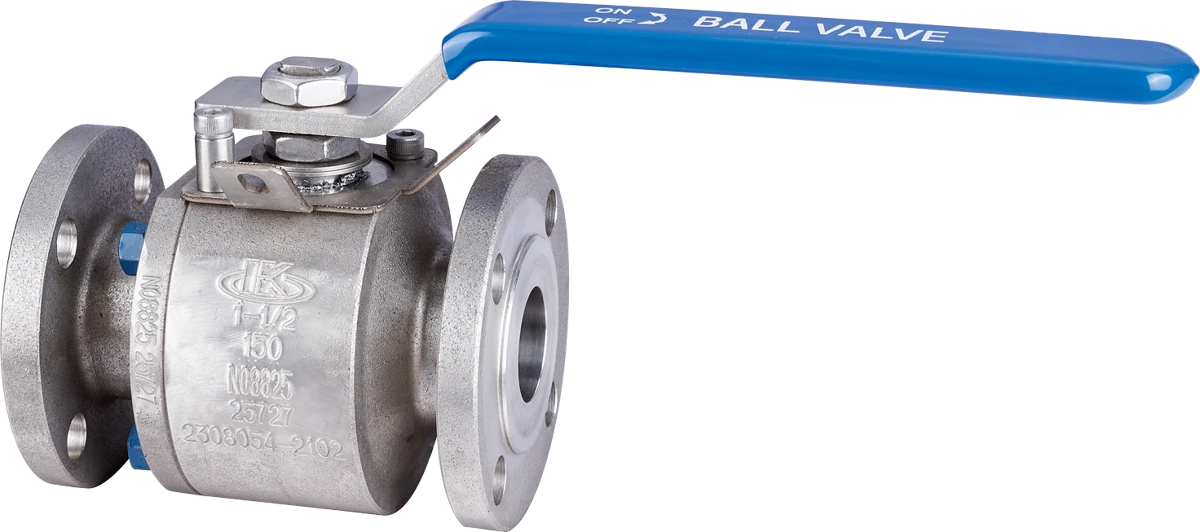

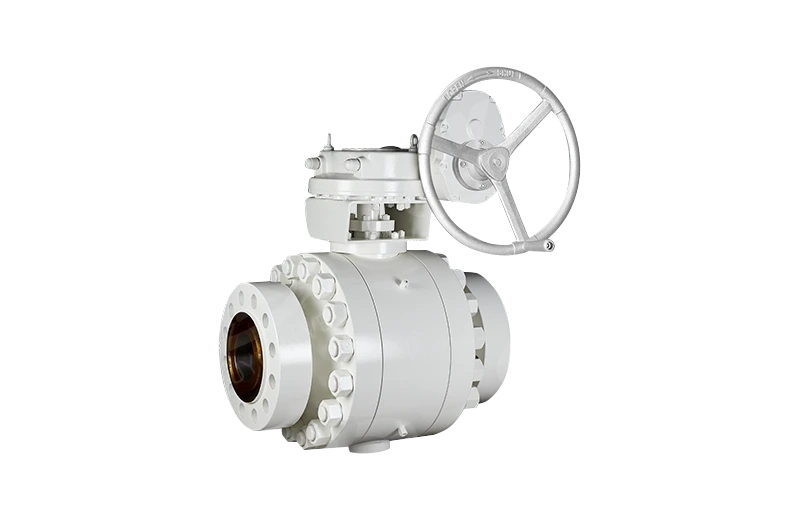

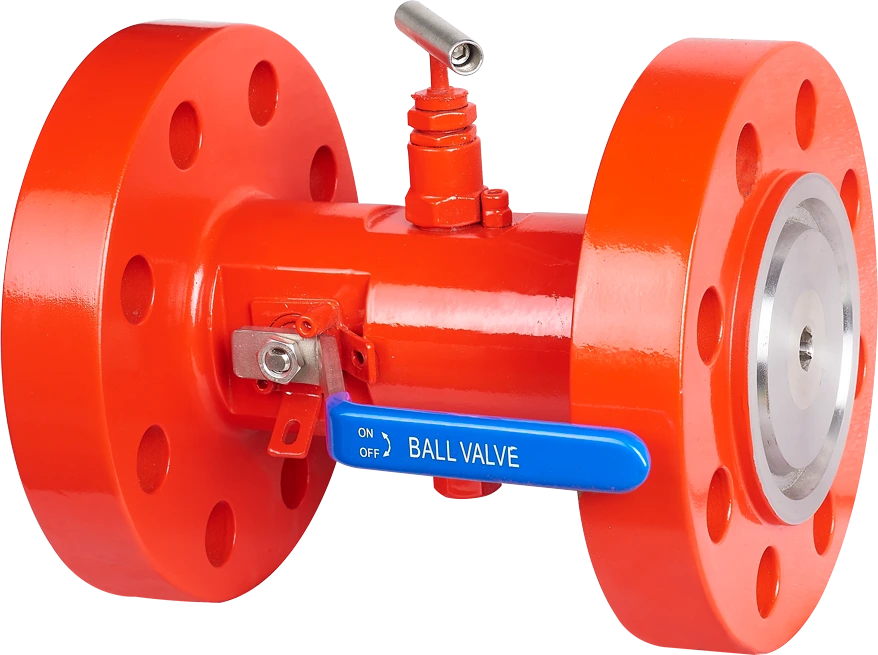

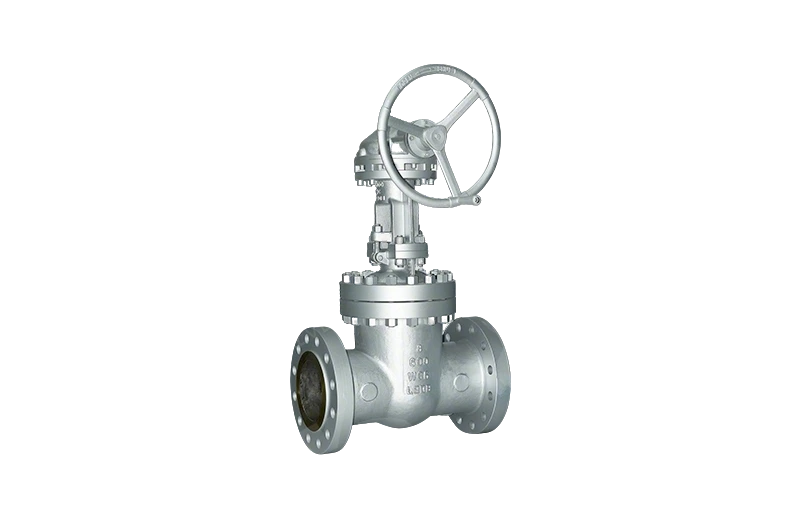

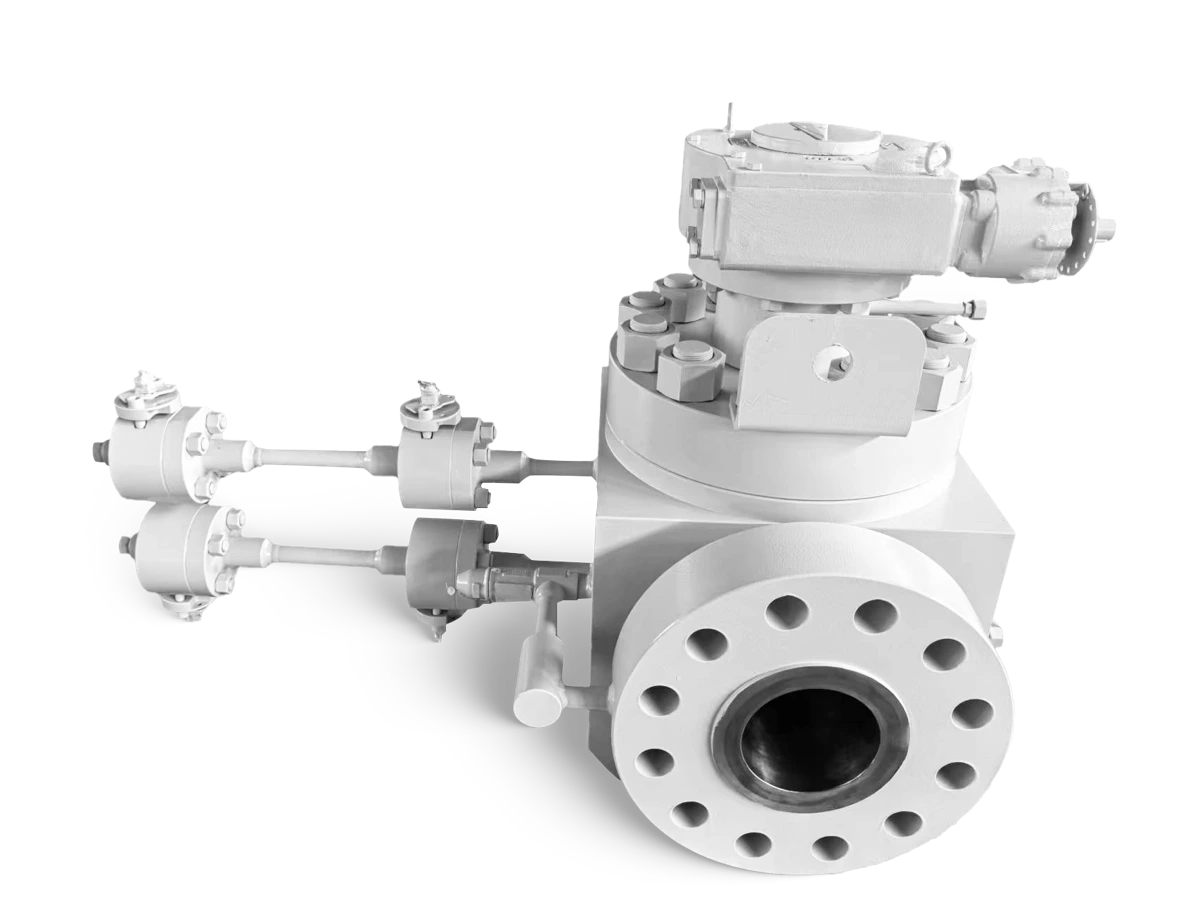

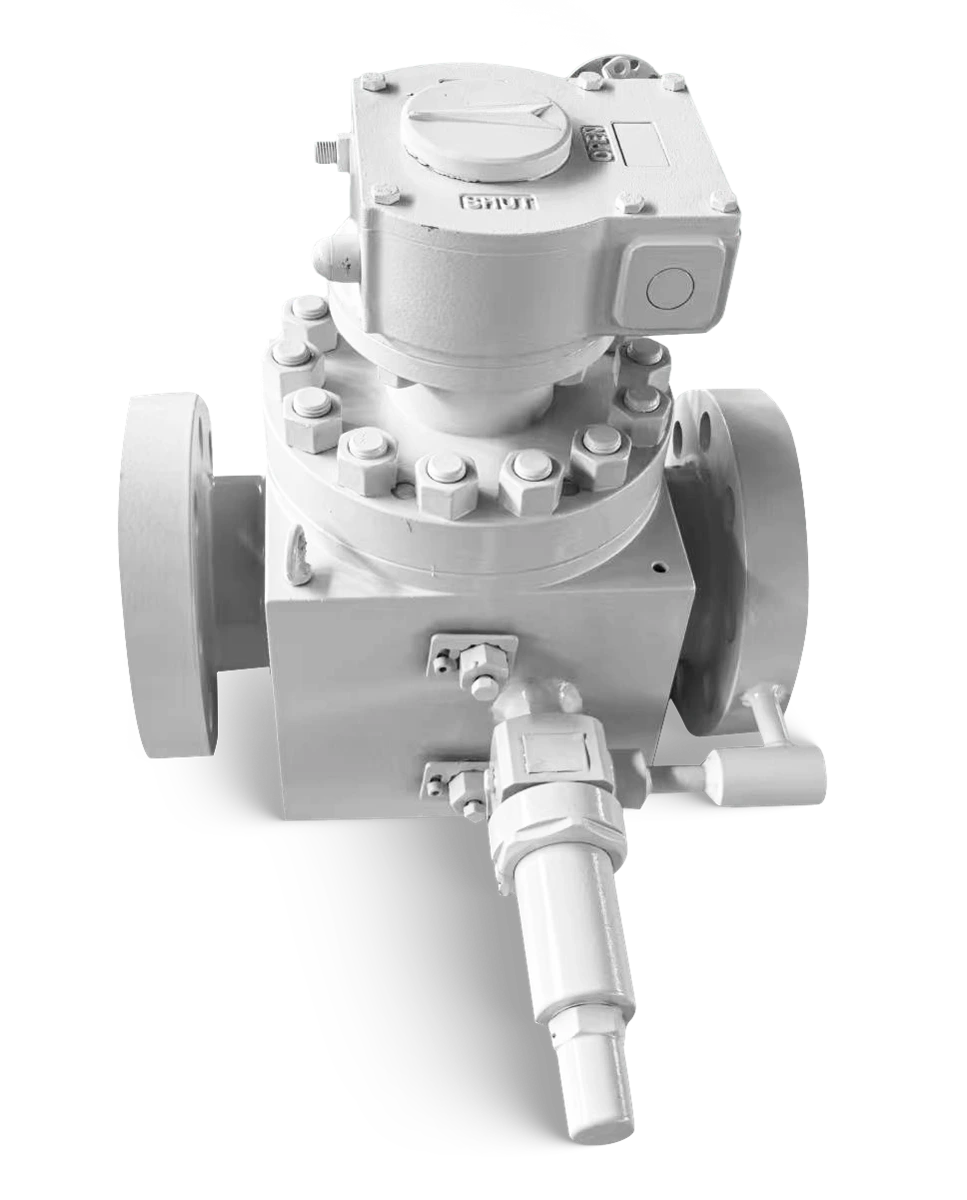

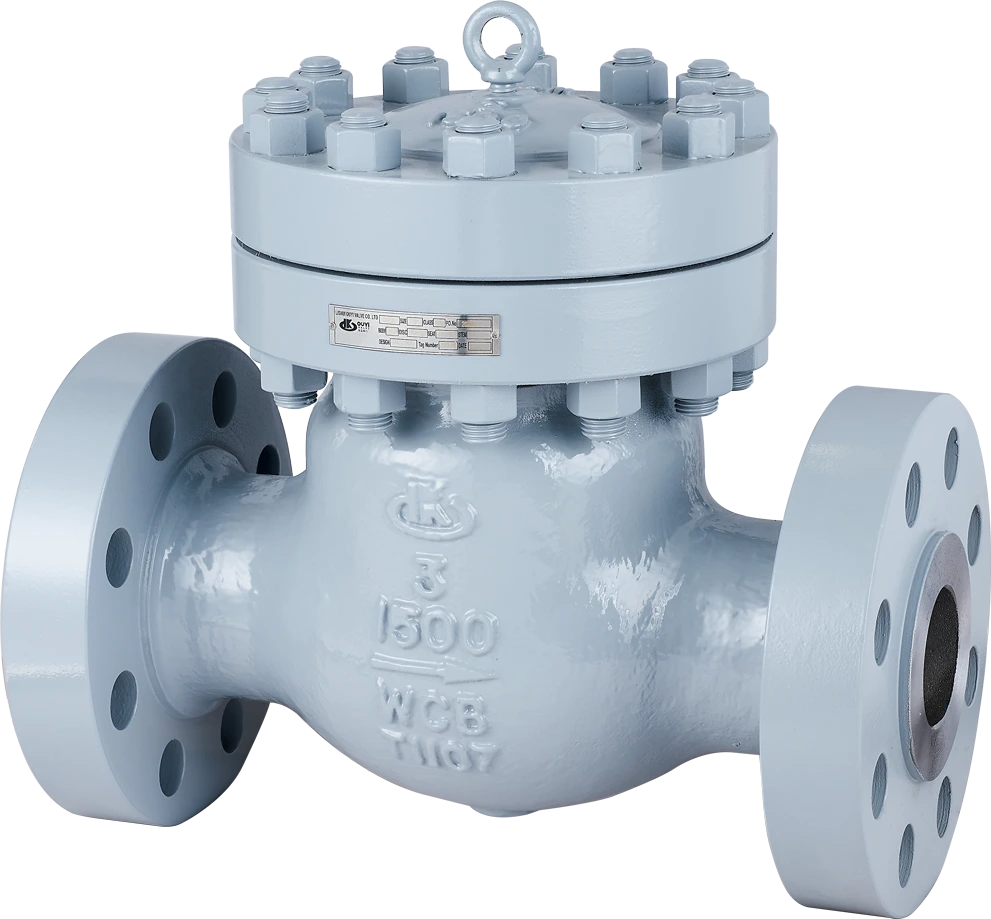

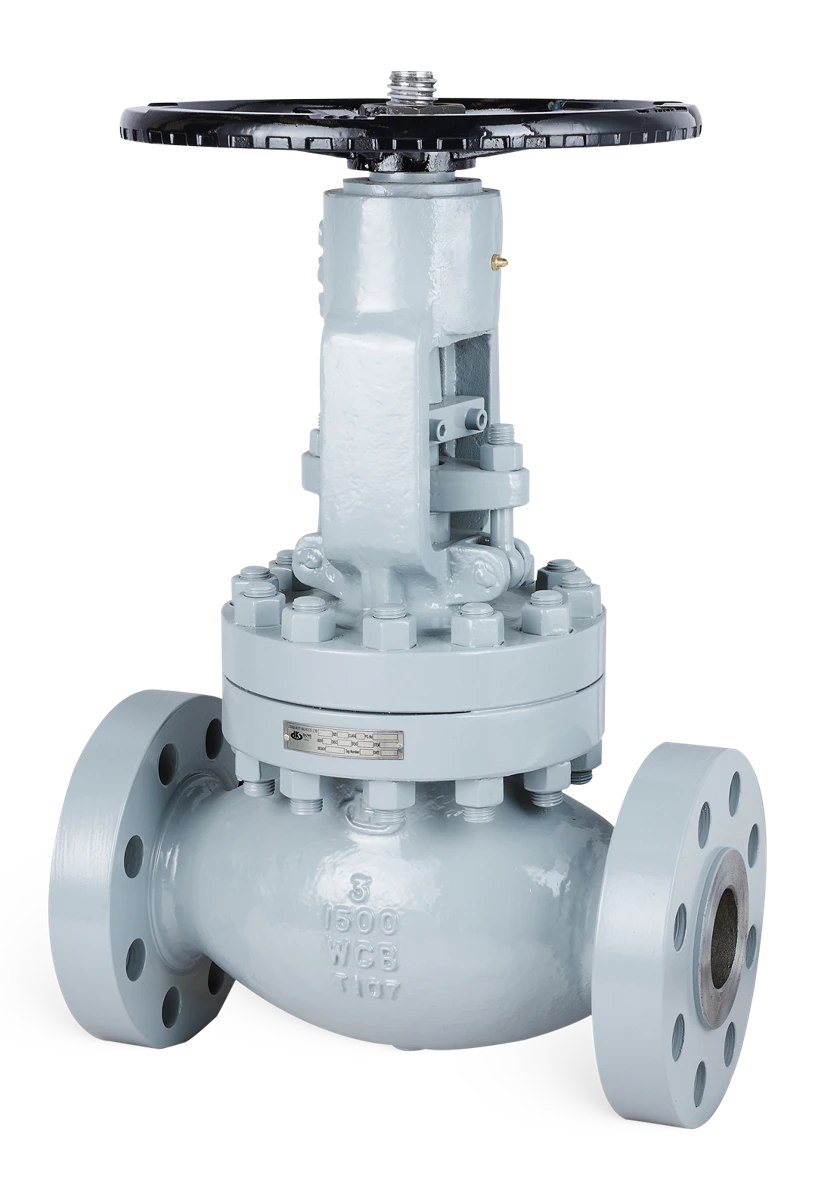

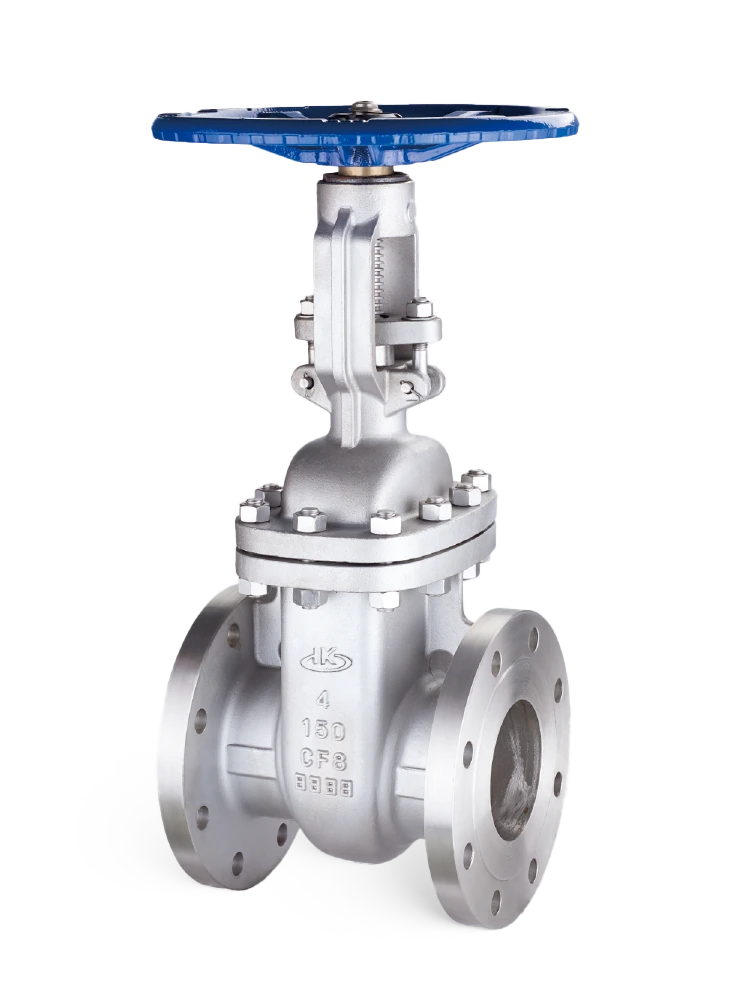

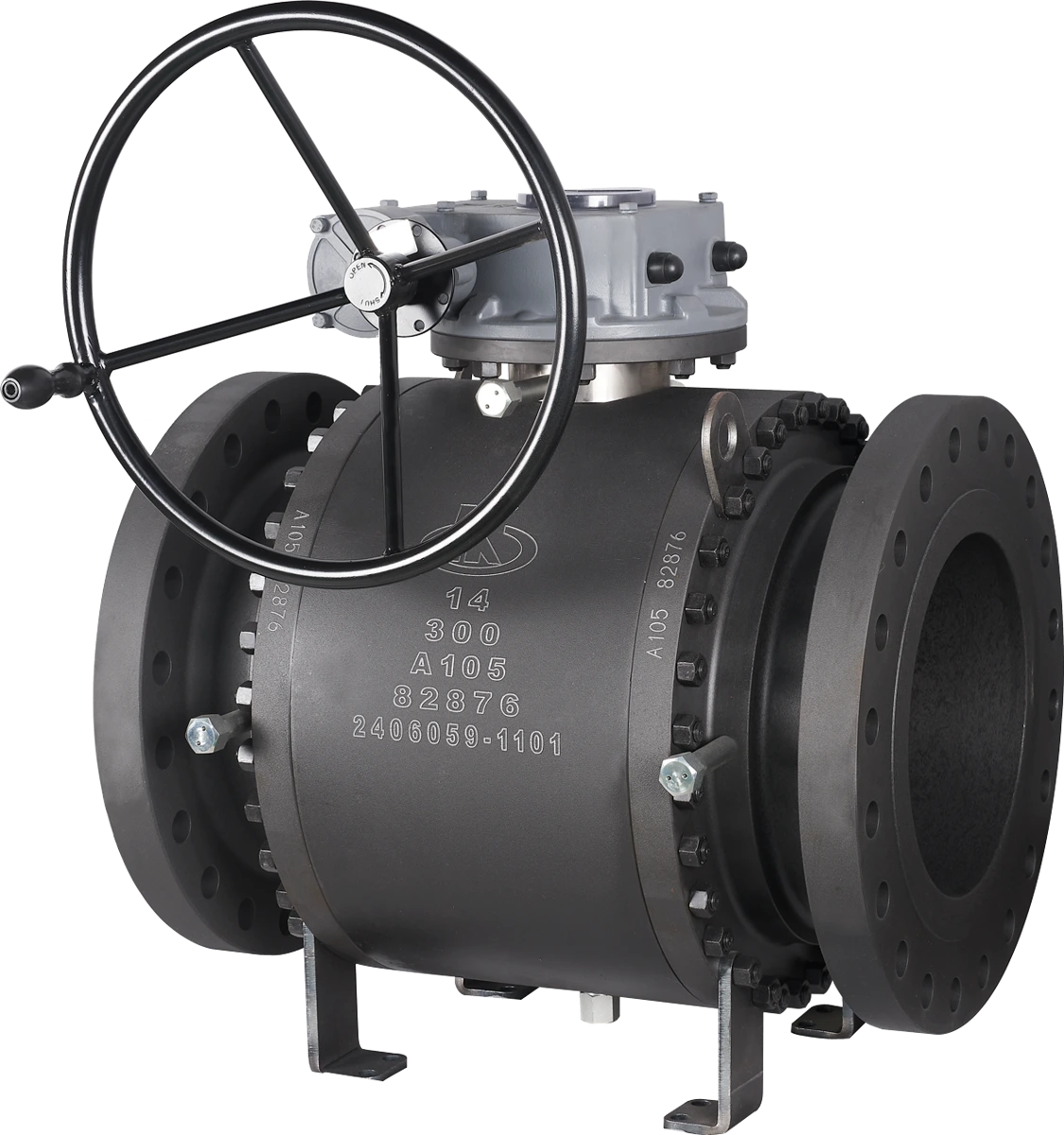

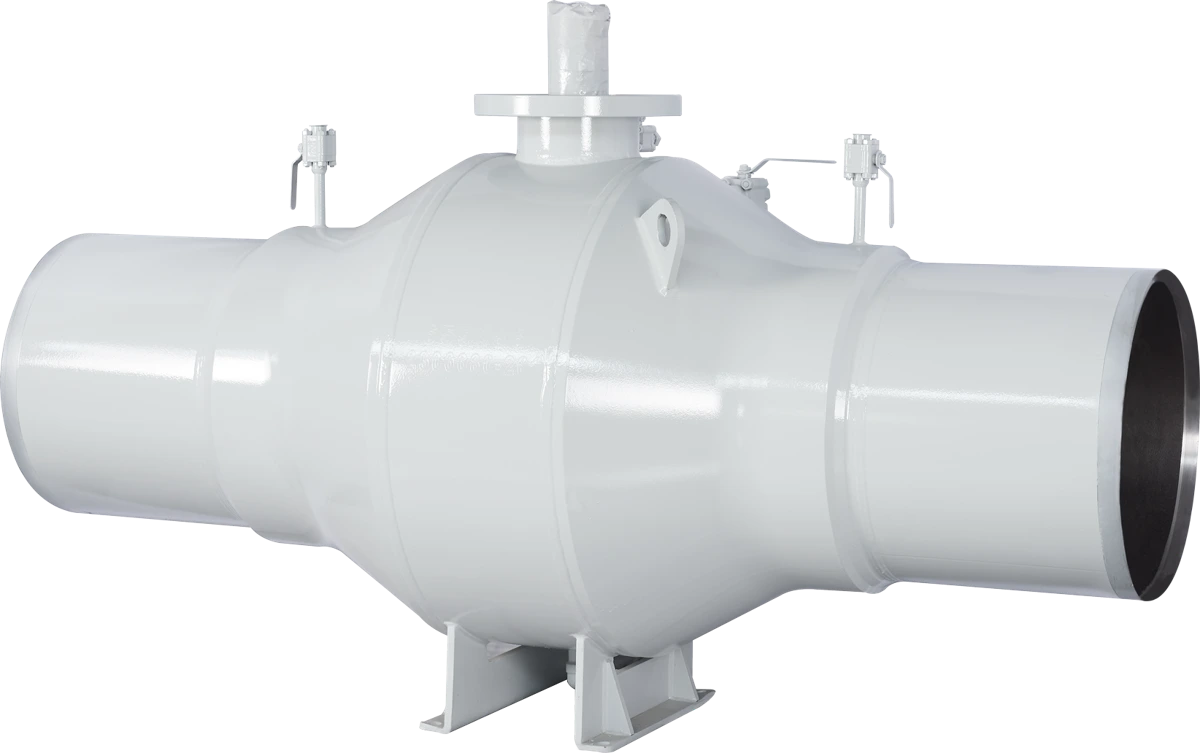

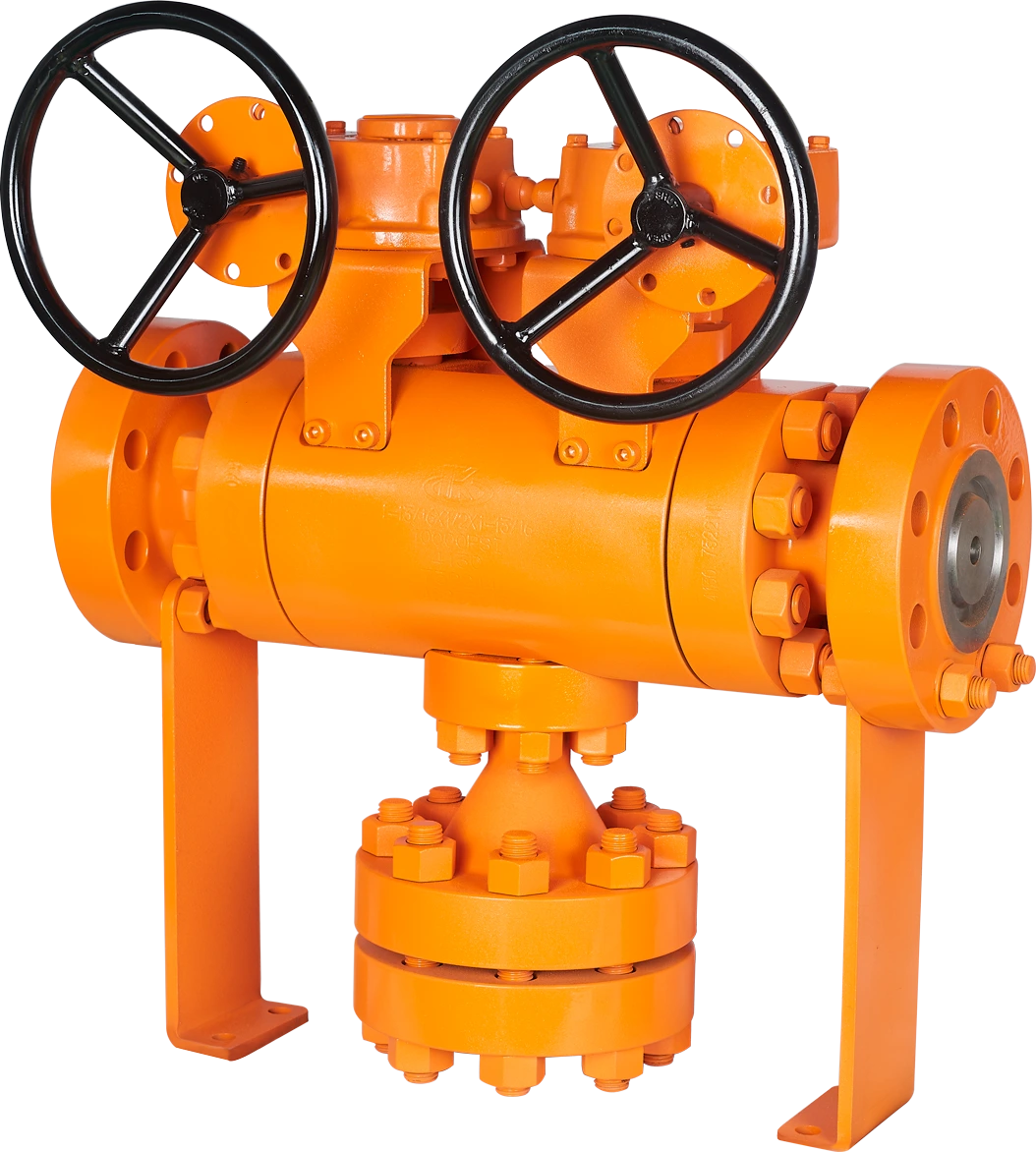

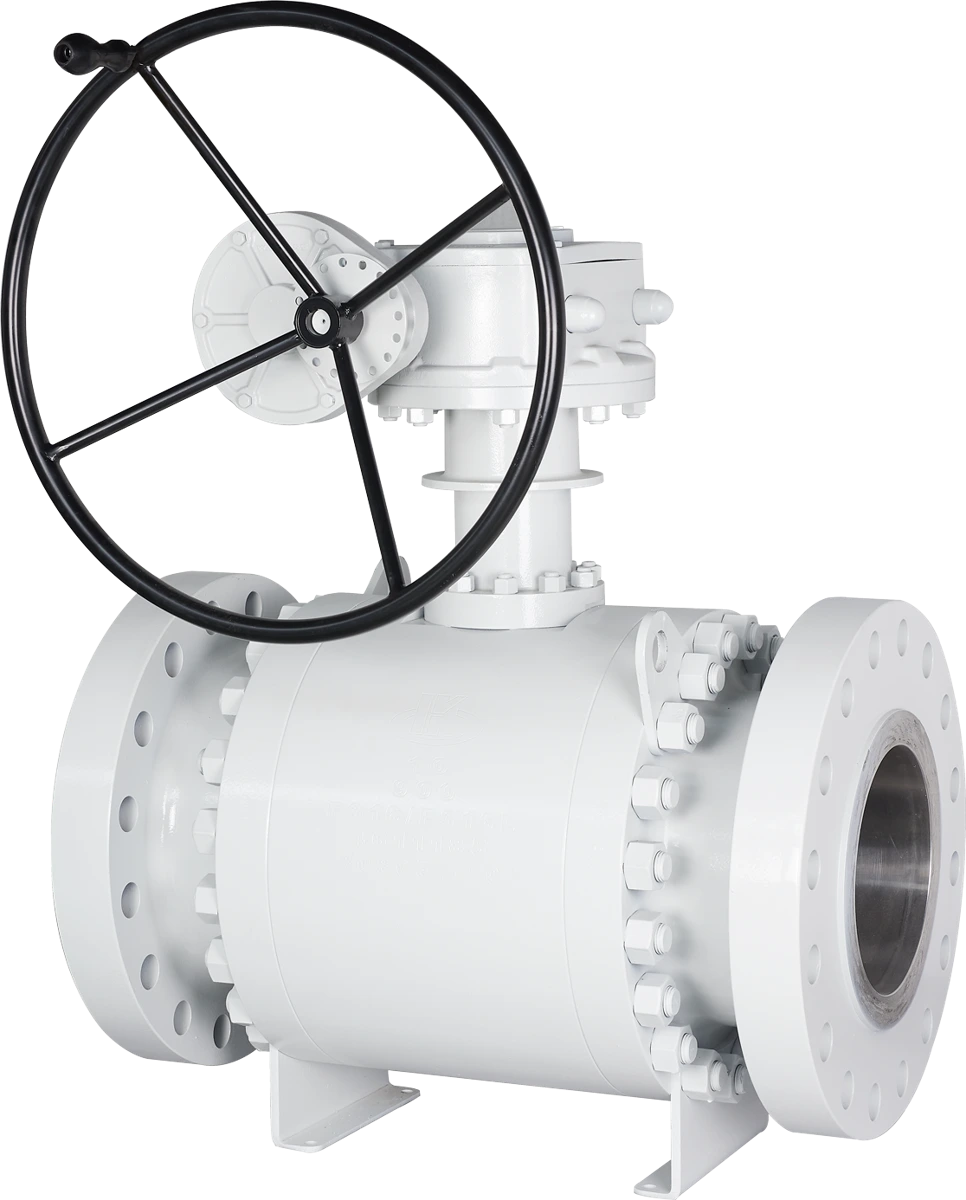

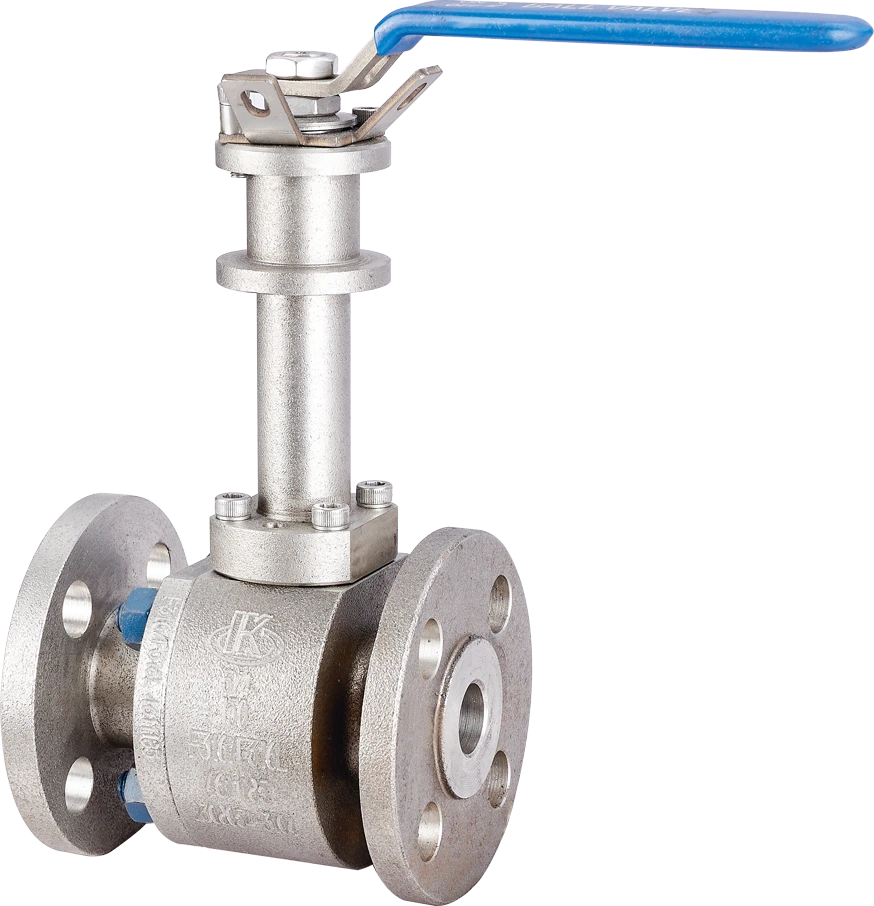

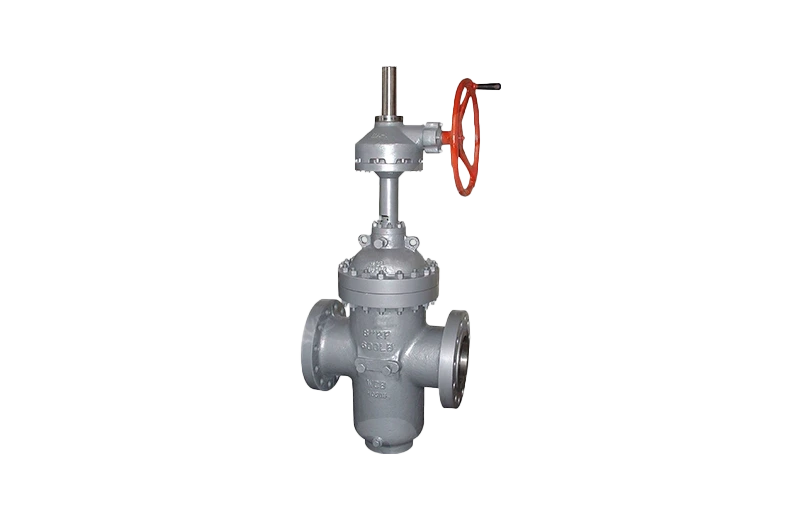

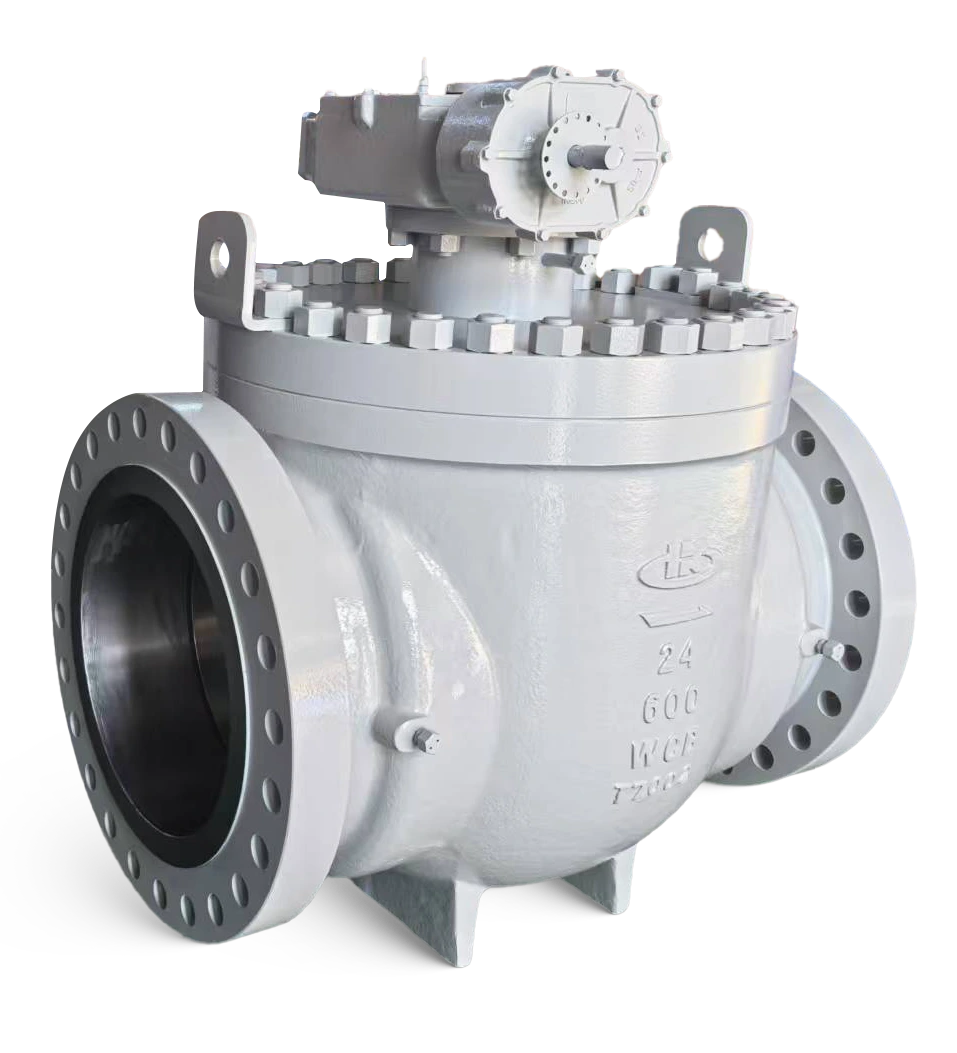

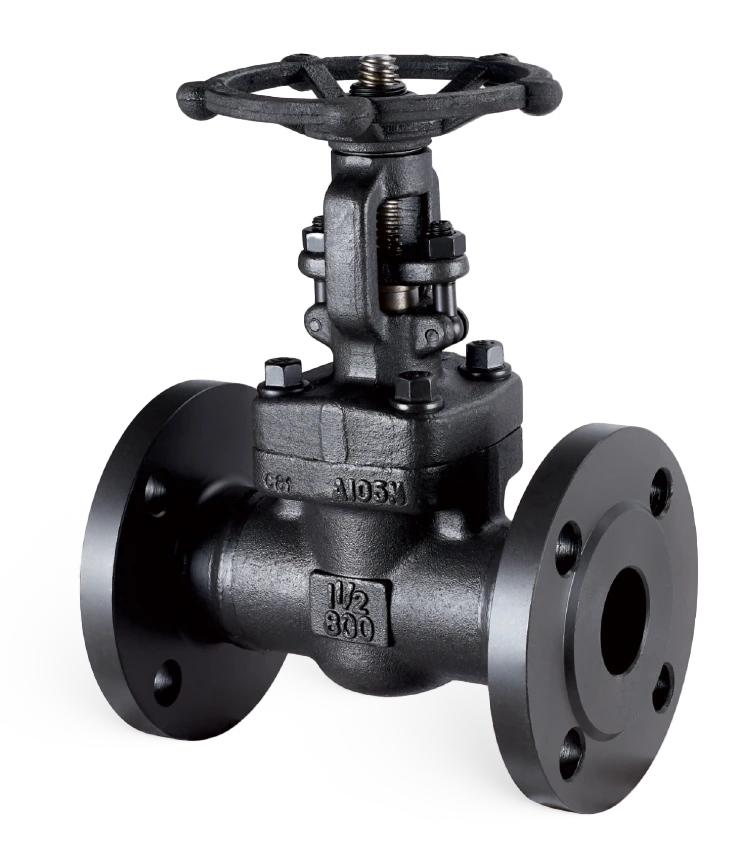

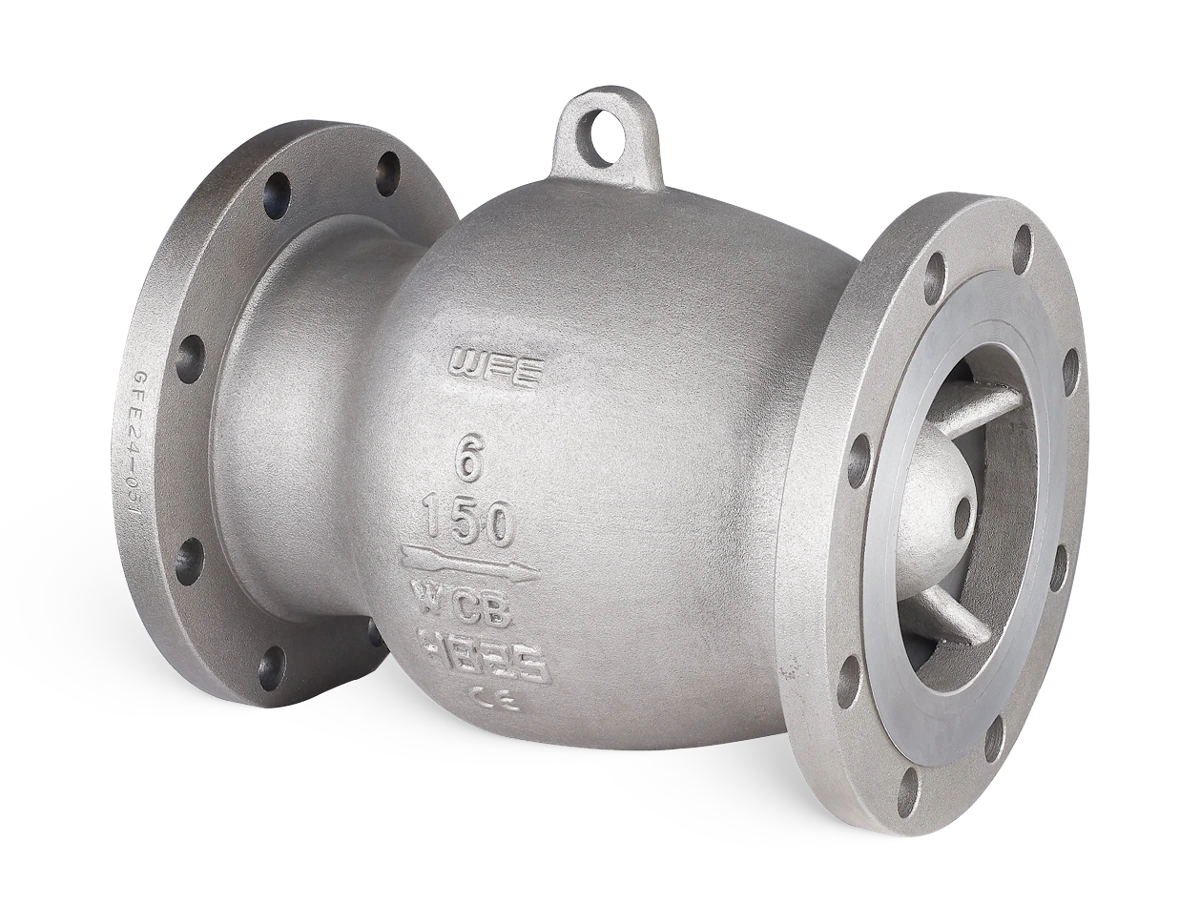

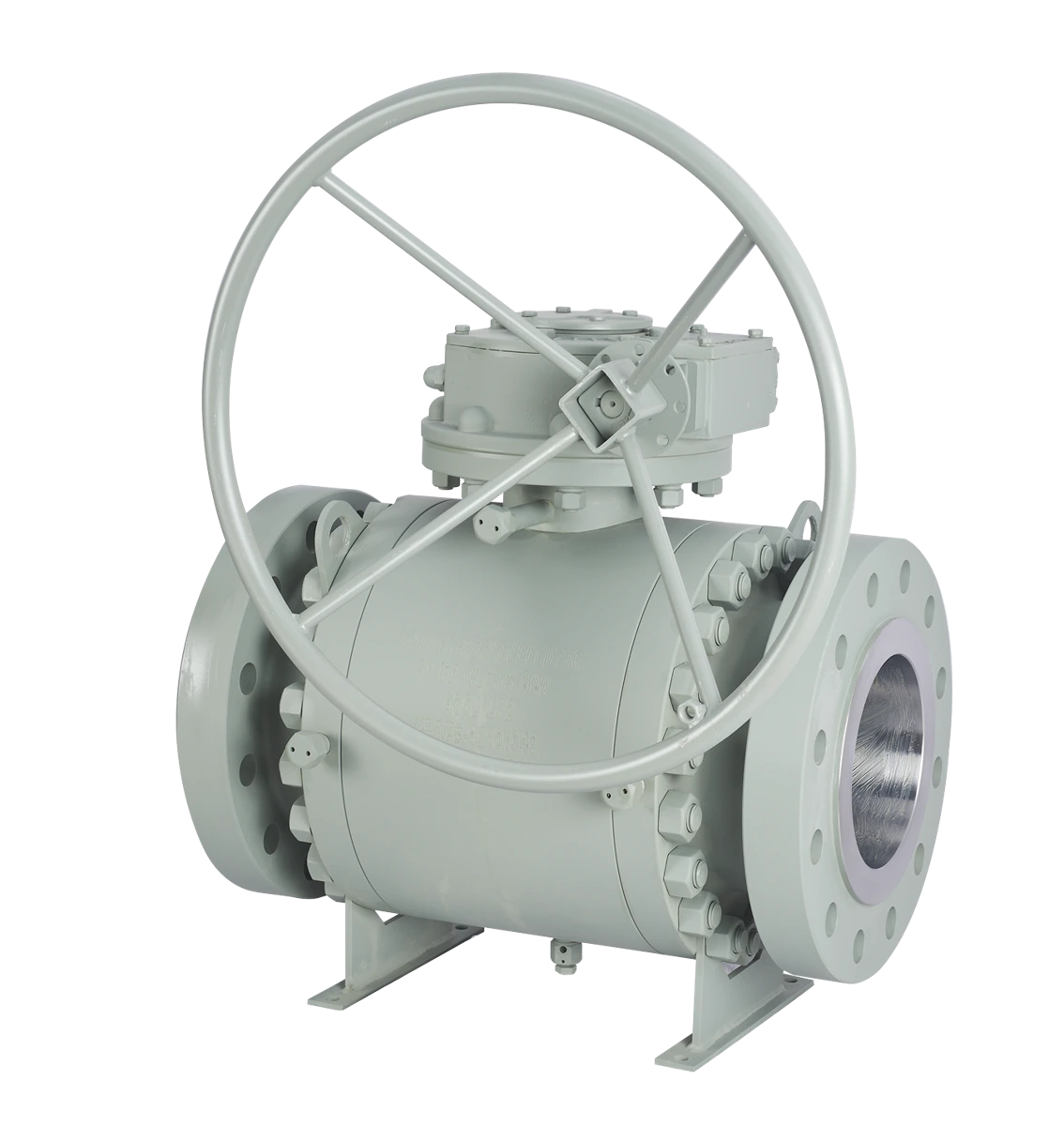

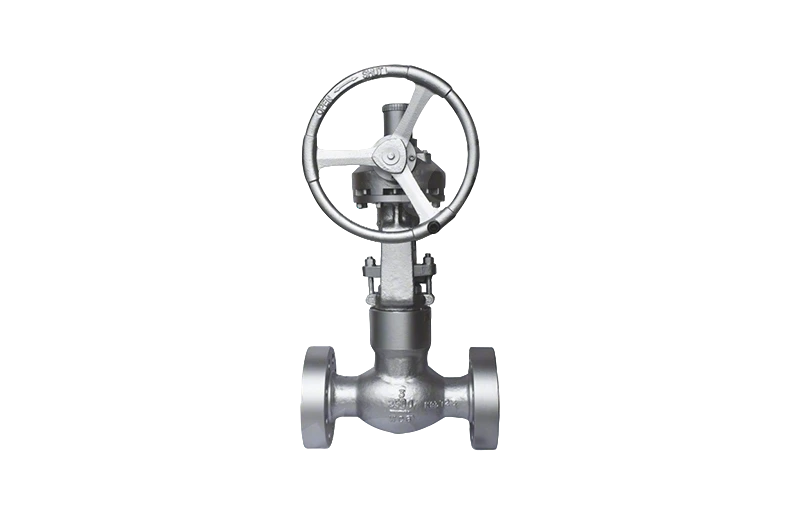

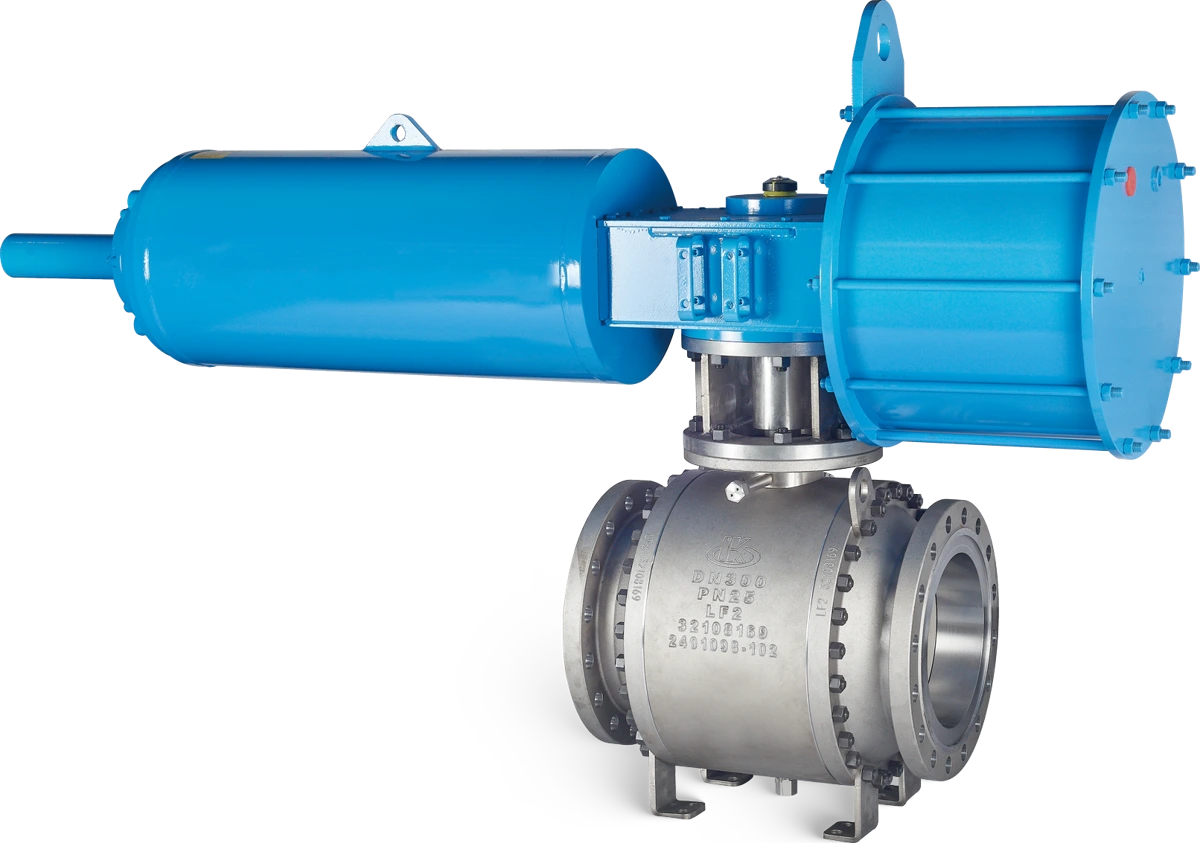

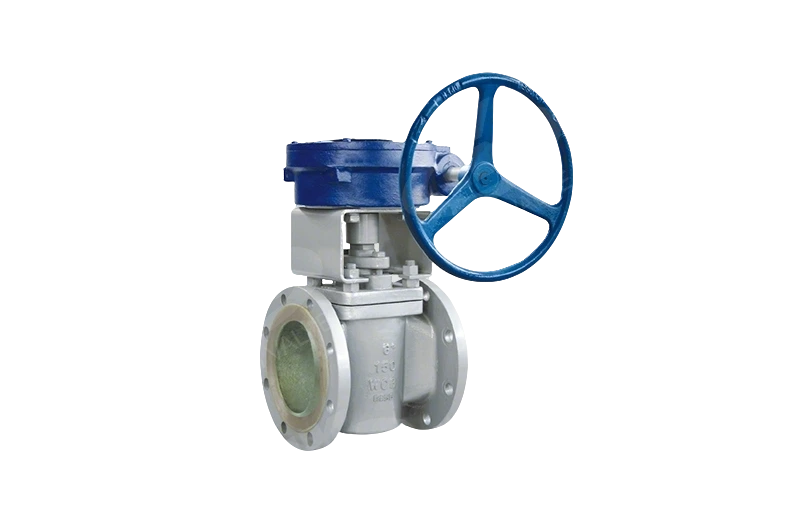

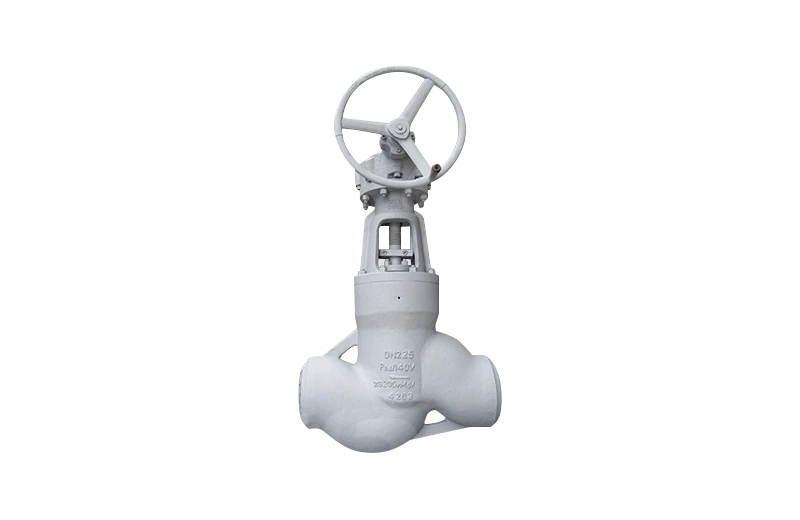

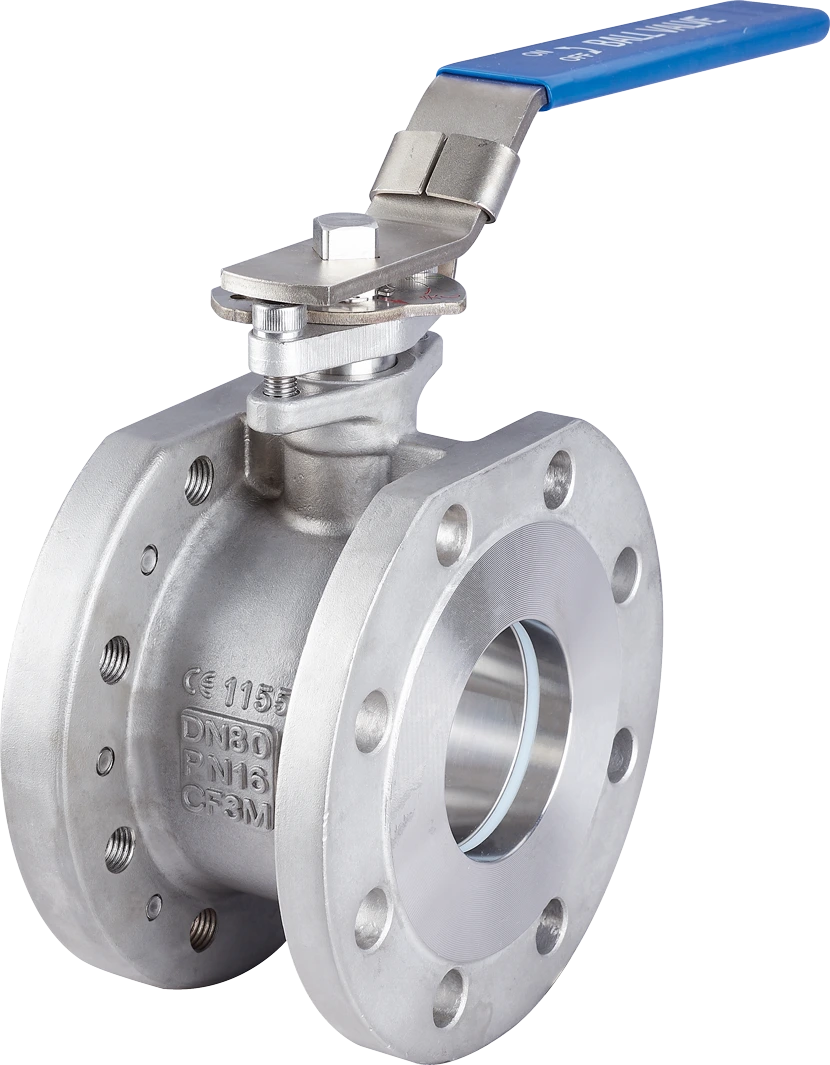

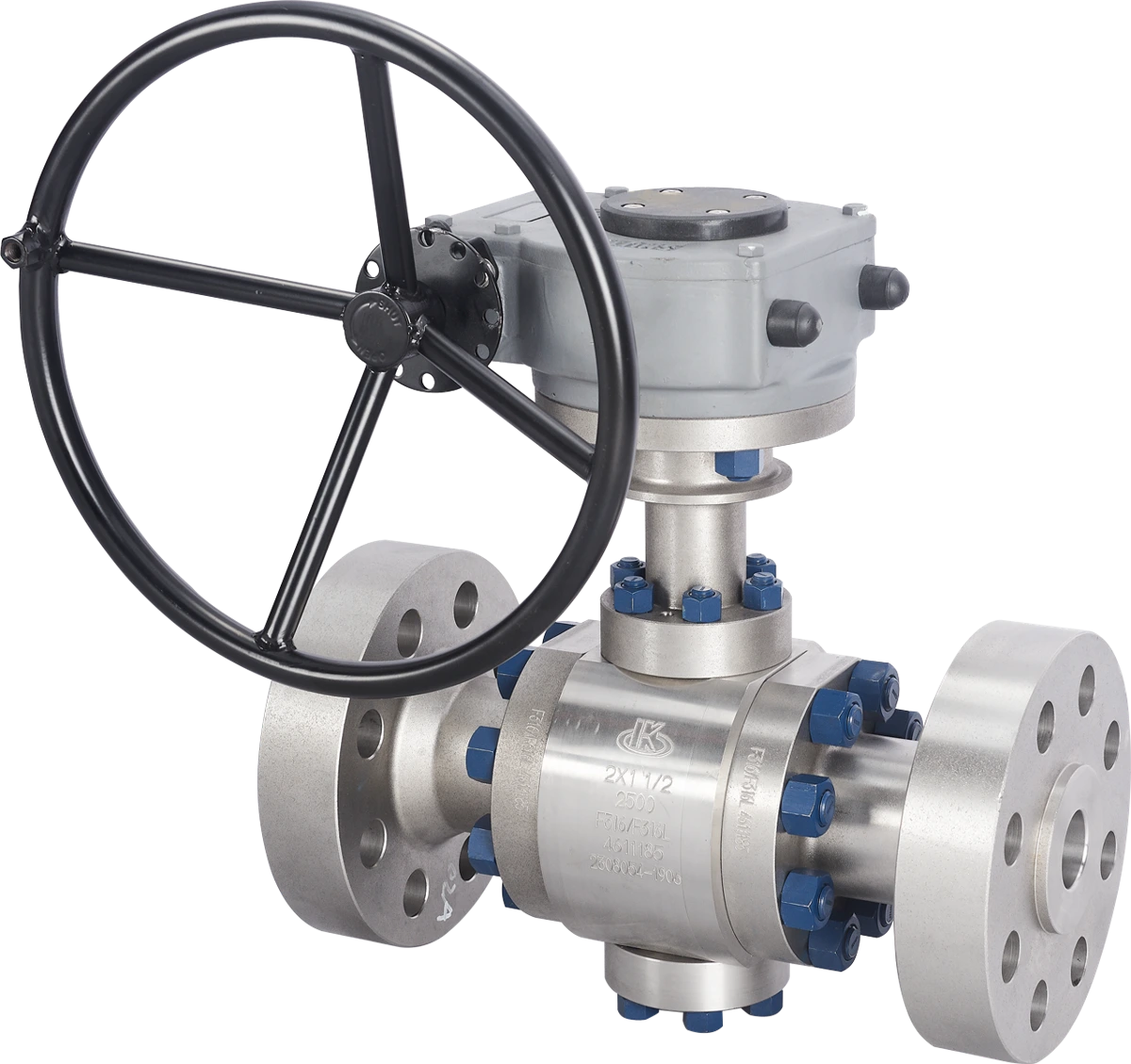

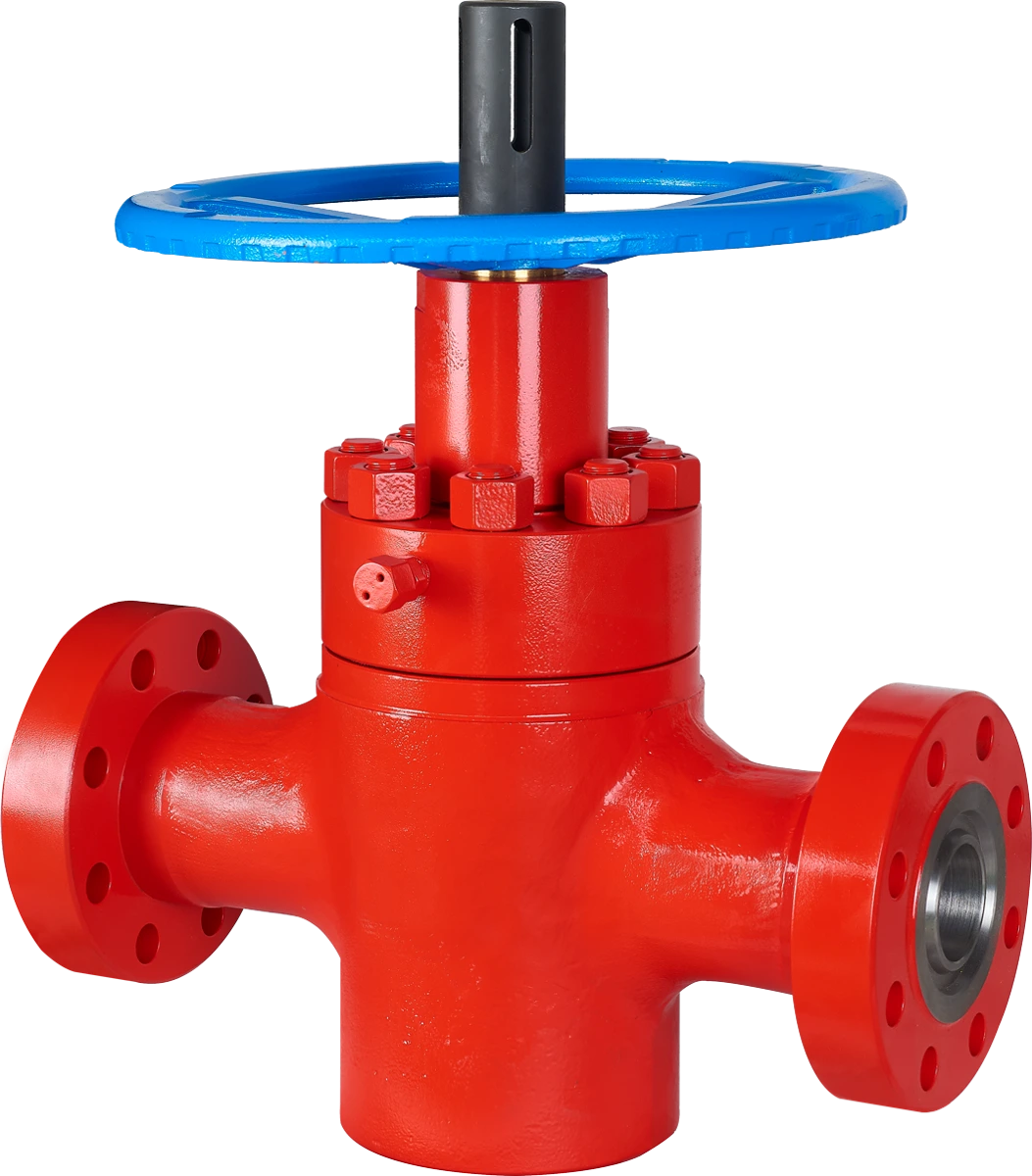

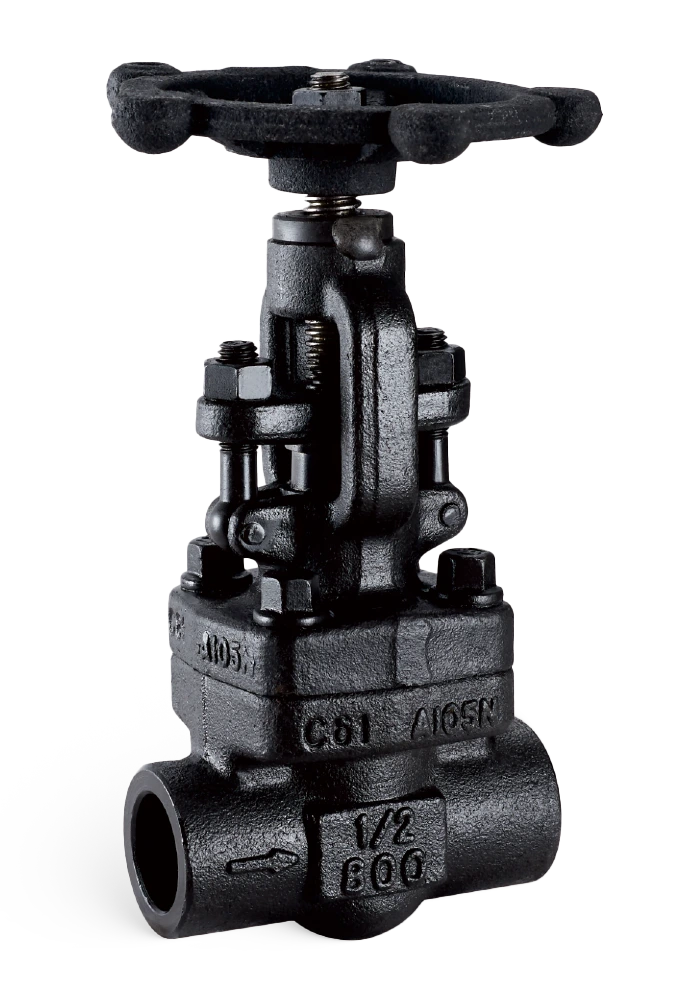

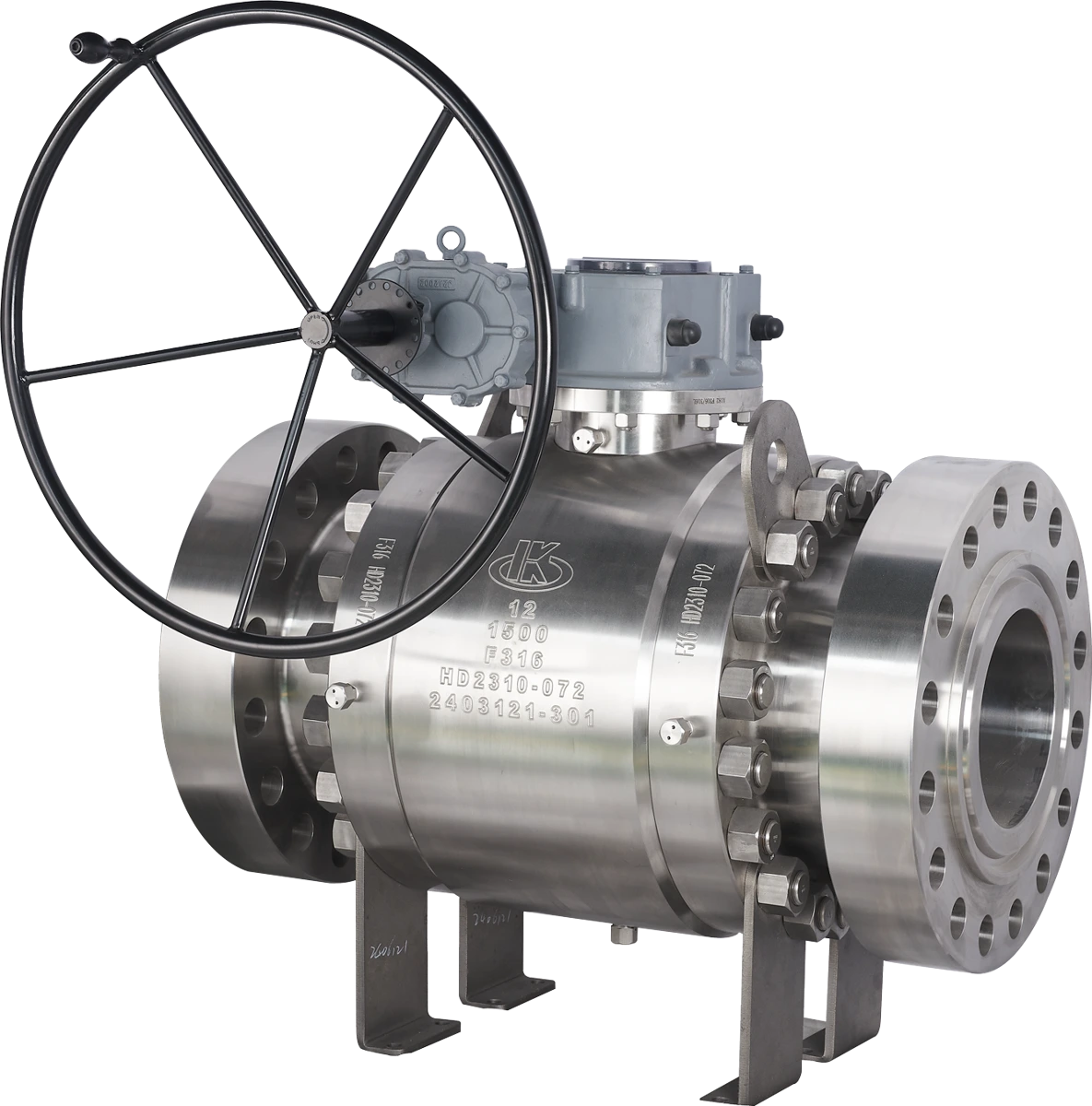

Axial-flow check valveGear-operated ball valveHandwheel-operated gate valveGear-operated ball valve with support feetDouble block and bleed ball valveDouble block and bleed valve with dual handwheelsBall valve with electric actuatorCompact forged gate valveForged globe valveFully welded ball valve with weld endsAngle choke valve with actuatorChoke valve with actuatorFlanged ball valve with manual gearboxGear-operated butterfly valveGear-operated gate valveBolted-body ball valve with manual gearboxHandwheel-operated globe valveFlanged lift check valveLever-operated flanged ball valveTrunnion-mounted ball valve with manual gearboxLever-operated floating ball valveHandwheel-operated choke valvePneumatically actuated ball valveHandwheel-operated globe valve with rising stemLever-operated ball valve with extended stemGear-operated ball valveHandwheel-operated wedge gate valveTrunnion-mounted ball valve with manual gearboxRising-stem gate valveGate valve with manual operator
MANUFACTURING CAPABILITY
Sizes and pressure classes
Select a valve type to see the combinations listed in OUYI’s Manufacturing Range List. These are manufacturing ranges, not stock availability. Pressure classes are shown as supplied and should not be read as operating pressure in psi.
Class 5000 - 10000 LB Source notation; confirm rating with PIP
1-13/16" ~ 7-1/16"
FLANGED , BUTTWELD , HUB ENDS
Gate Valve (Bolted Bonnet)
Pressure class / source rating
Size range (inch)
End connections
Class 150 LB - 2500 LB
1/2'' ~ 2''(FORGED MATERIAL)
Flanged/SW/NPT/BW
Class 150 - 1500 LB
3'' ~ 14''
Flanged
Class 150 - 600 LB
16'' ~ 48''
Flanged
Gate Valve (Pressure Sealed Bonnet)
Pressure class / source rating
Size range (inch)
End connections
600 LB ~ 2500 LB
3'' ~ 12''
Flanged
900 LB ~ 2500 LB
14'' ~ 24''
Flanged
Globe Valve
Pressure class / source rating
Size range (inch)
End connections
150LB 2500 LB Source notation; confirm rating with PIP
1/2'' ~ 2''(FORGED MATERIAL)
Flanged/SW/NPT/BW
150LB 2500 LB Source notation; confirm rating with PIP
3'' ~ 16''
Flanged
150 LB ~ 300 LB
14'' ~ 24''
Flanged
Swing Check Valve(Piston check for small size below 2")
Pressure class / source rating
Size range (inch)
End connections
150 LB ~ 2500 LB
1/2'' ~ 2''(FORGED MATERIAL)
Flanged/SW/NPT/BW
150 LB ~ 2500 LB
3'' ~ 12''
Flanged
150 LB ~ 1500 LB
14'' ~ 26''
Flanged
150 LB ~ 900 LB
28'' ~ 32''
Flanged
150 LB ~ 300 LB
32'' ~ 36''
Flanged
Dual Plate Check Valve
Pressure class / source rating
Size range (inch)
End connections
150 LB ~ 2500 LB
2'' ~ 12''
Flanged
150 LB ~ 900 LB
14'' ~ 32''
Flanged
Final selection depends on material, temperature, medium and the required configuration. The API 6A rating notation and two Globe Valve entries require confirmation; their original wording is retained above.
MANUFACTURER DOCUMENTATION
Certificates and test reports
Manufacturer certificates shown in the supplied OUYI documentation. Certificate scope and validity are confirmed for the selected product.
API 6D, API 6A & API 600
SIL 3 & CE PED
ISO 9001, ISO 14001 & ISO 45001

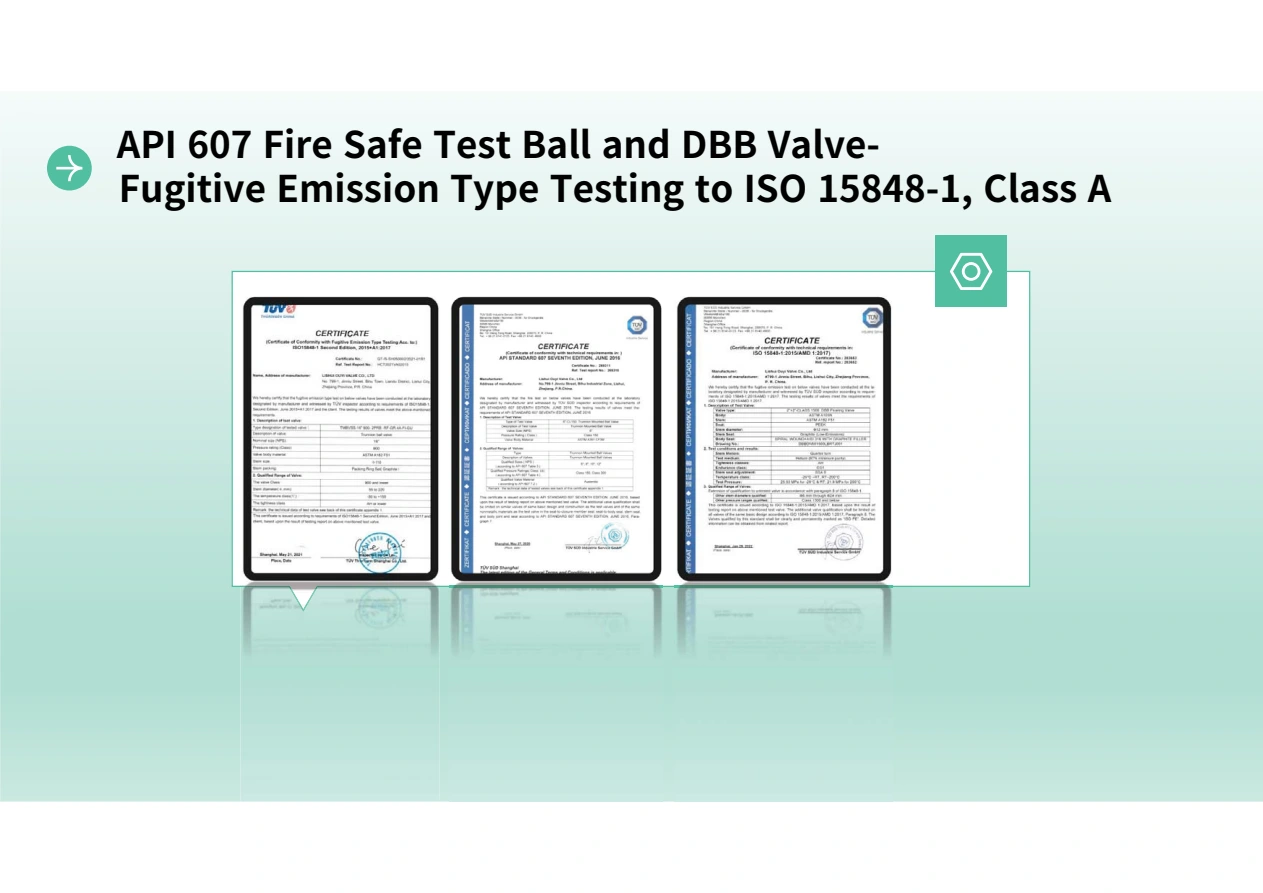

Fire-safe & fugitive-emission testing
API 6D, API 6A & API 600SIL 3 & CE PEDISO 9001, ISO 14001 & ISO 45001Fire-safe & fugitive-emission testing
Inspection and testing scope
The applicable inspection and test plan is agreed against the valve specification, material and project requirements.
Chemical Composition Check
Mechanical Testing, including Tensile Strength, Yield Strength, Elongation, Reduction of Area (where applicable), and Hardness Check
Charpy V-Notch Impact Test for LTCS, where applicable
Intergranular Corrosion (IGC) Testing for Austenitic Stainless Steel materials, including castings and forgings
Corrosion Testing of Alloy 825 forgings in accordance with ASTM G28 Method A, where applicable
Radiographic Testing (RT) of critical areas of castings — 10% for Class 150–300 and size below 6", and 100% for other applicable valves
Ultrasonic Testing (UT) of forgings — 10% for Class 150–300 and size below 6", and 100% for other applicable valves
Magnetic Particle Testing / Wet Fluorescent Magnetic Particle Testing (MPT/WFMT) for magnetic forgings — 10% for Class 150–300 and size below 6", and 100% for other applicable valves
Liquid Penetrant Testing (LPT) for non-magnetic forgings — 10% for Class 150–300 and size below 6", and 100% for other applicable valves
Positive Material Identification (PMI) for applicable SS/CRA parts
Physical verification of pressure-containing parts
Scope & approach
Built around the application
PIP supports industrial valve procurement in Oman and across the GCC, covering floating and trunnion-mounted ball valves, gate valves, globe valves, check valves and double block and bleed assemblies. Our supply scope includes forged and cast designs, material selection and actuated valve packages. Review the manufacturing range below for available sizes and pressure classes. For duties beyond a standard design, explore our project-specific special valves.
How we can support you
Ball valves: floating, trunnion mounted and top entry
Start with the process duty: isolation, flow regulation or prevention of reverse flow. PIP reviews the required valve type alongside the medium, pressure, temperature, materials and end connections.
Floating, trunnion and DBB configurations
Include the required construction, pressure class and size in your enquiry. For double block and bleed assemblies or actuated packages, provide the isolation arrangement and control requirements.
What should I send for a valve quotation?
Send your valve list or datasheet, quantities, materials, pressure classes, connection standards and required documentation. Include the delivery location and requested schedule so the supply scope can be reviewed.
